Description

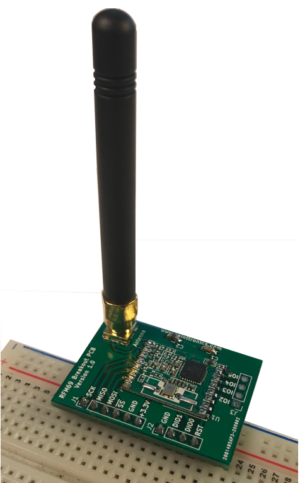

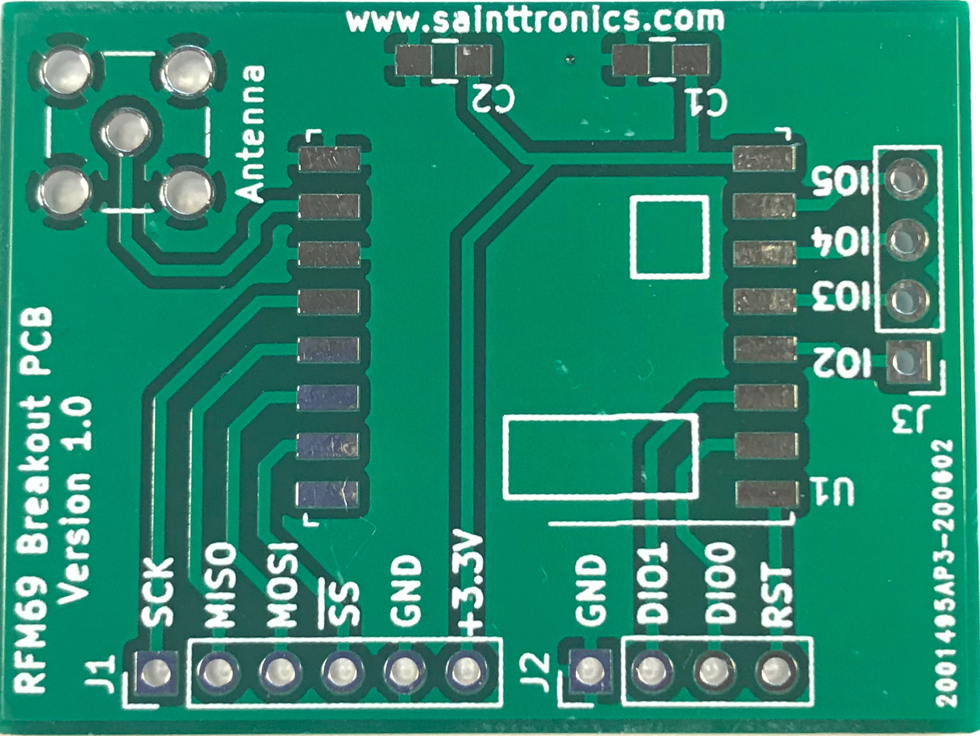

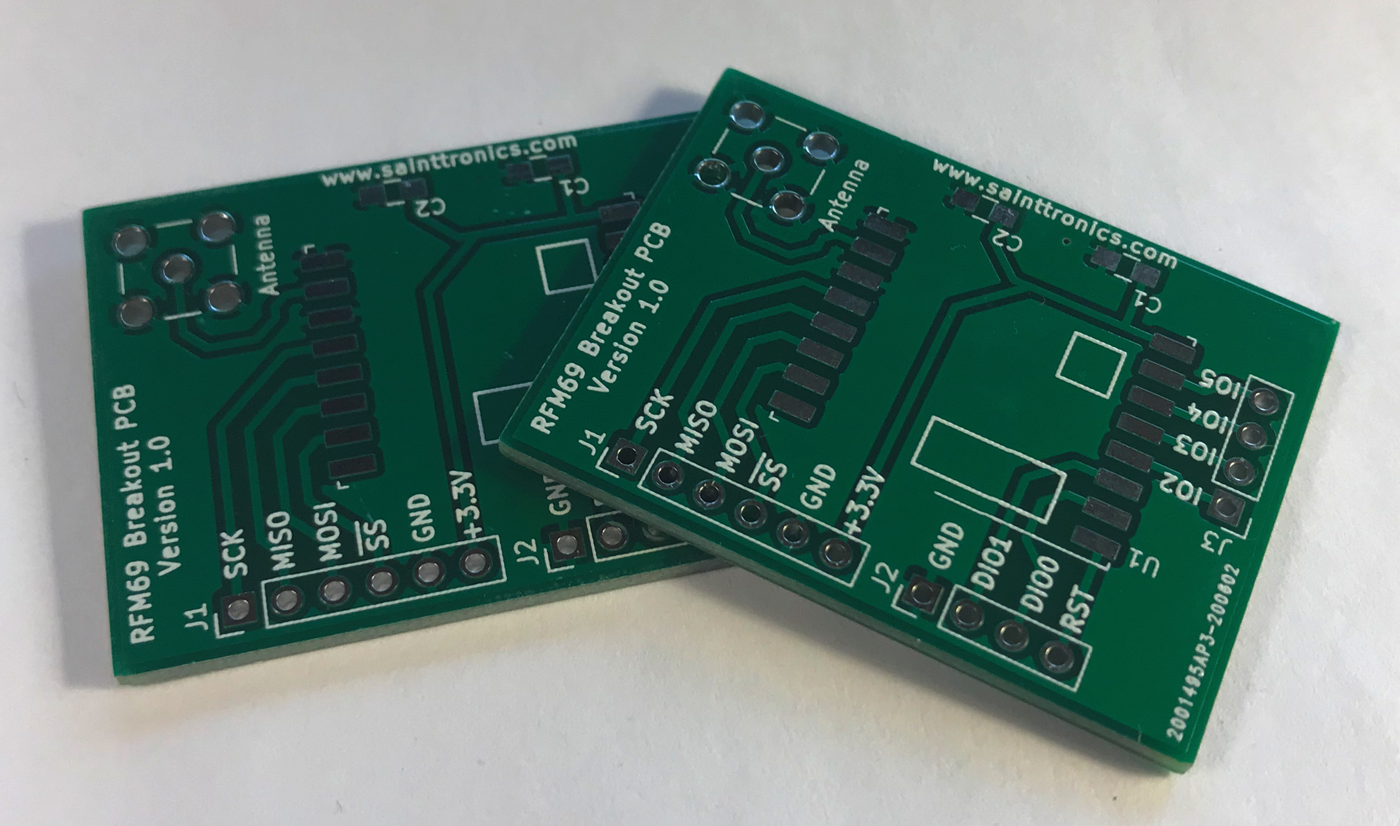

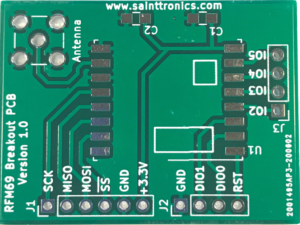

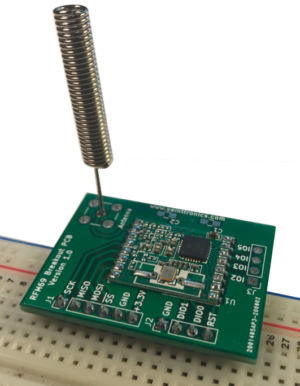

Breakout PCB for Hope RF RFM69 Radio Module

• Low profile.

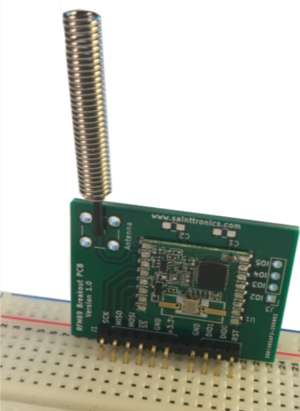

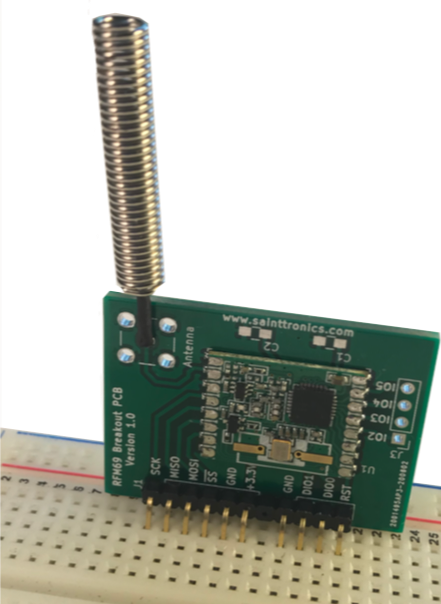

• Supports mounting vertically and horizontally.
• Main communications and I/O connections on one side.
• Additional I/O pins exposed on a separate connect for other applications.

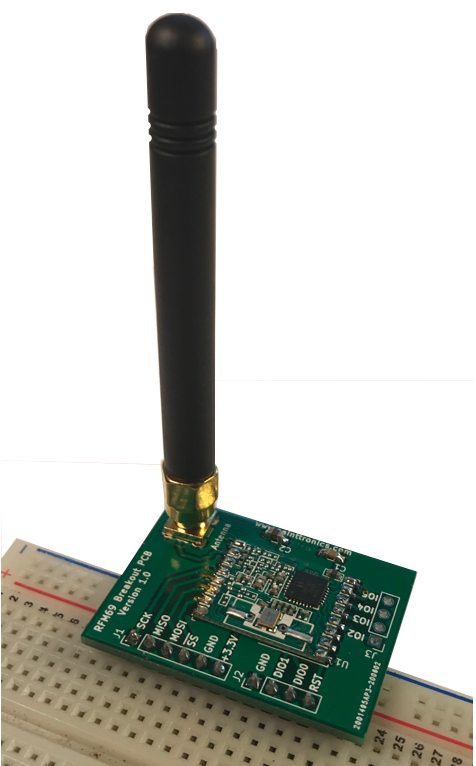

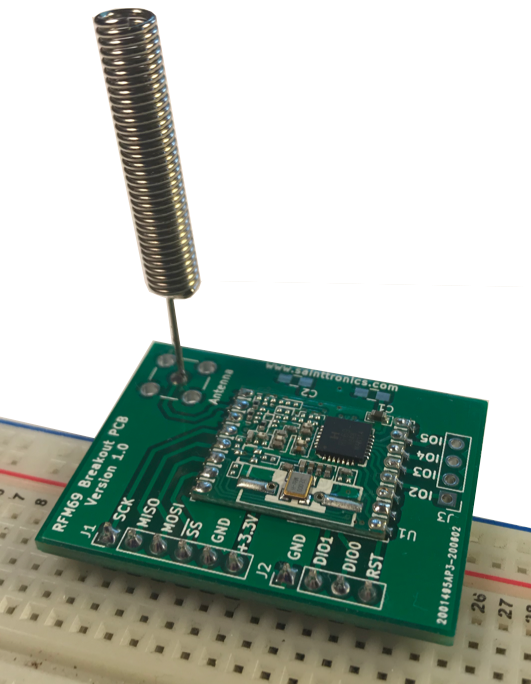

• Supports various antenna connections including SMA.
• 2.5″ Pitch spacing for prototype boards.
• Space for optional bypass and filter capacitors.

RFM69_Breakout_Schematic
